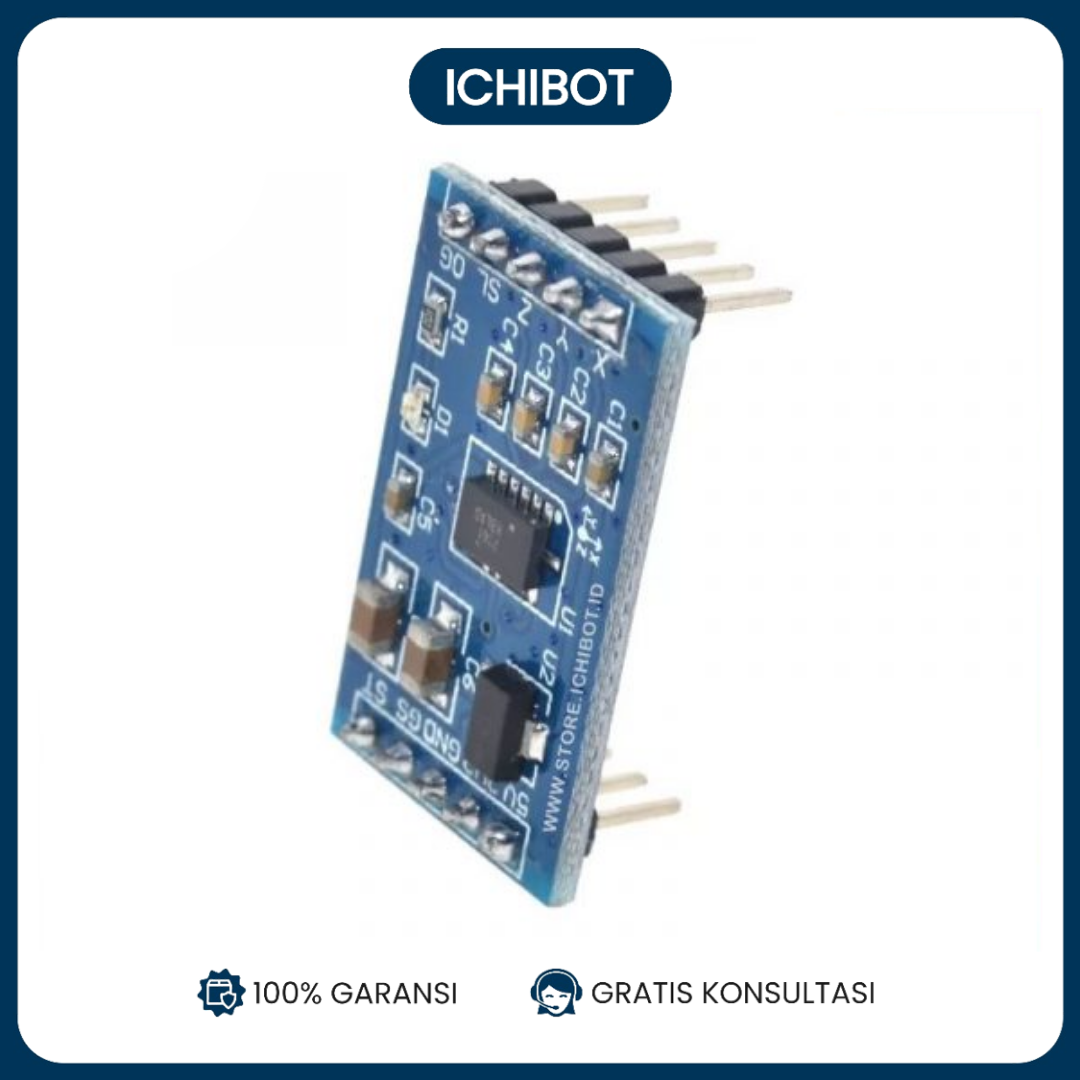

MMA7361 Angle Sensor Tilt Sensor Acceleration Accelerometer

Description

Three-axis analog signal output

1. Onboard MMA7361 (replaces MMA7260) low-cost miniature capacitive acceleration sensor;

2. Support 5V/3.3V voltage input, onboard high-speed LDO, lower voltage drop, faster load response speed, very suitable for high noise power supply environment;

3. The range is selected through the IO of the single-chip microcomputer, and the resistance can also be selected;

4. Commonly used pins have been led out, and the pins are standard 100mil (2.54mm), which is convenient for dot matrix board;

5. Sleep enable can be controlled by MCU IO;

6. Volume (length, width and height) 27.9mm*16.8mm*11mm

 7. The center distance of the needle rows on both sides: 24.852mm;
